50M Type-C (CHD01) Wireless HDMI 1080P Video Transmitter Receiver Kit

Description

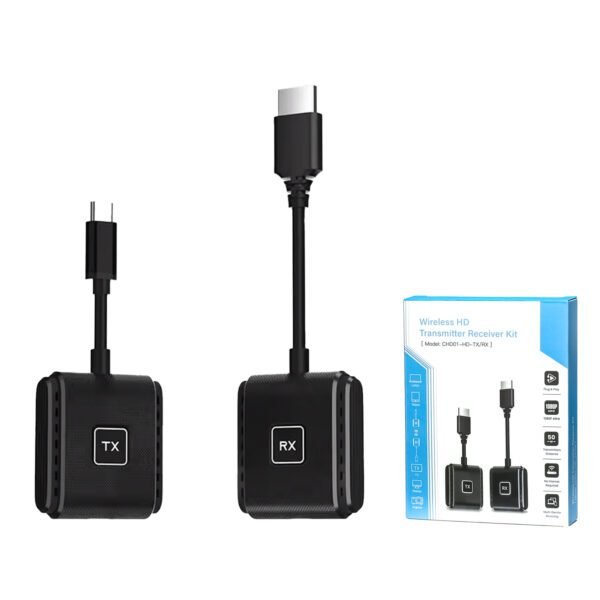

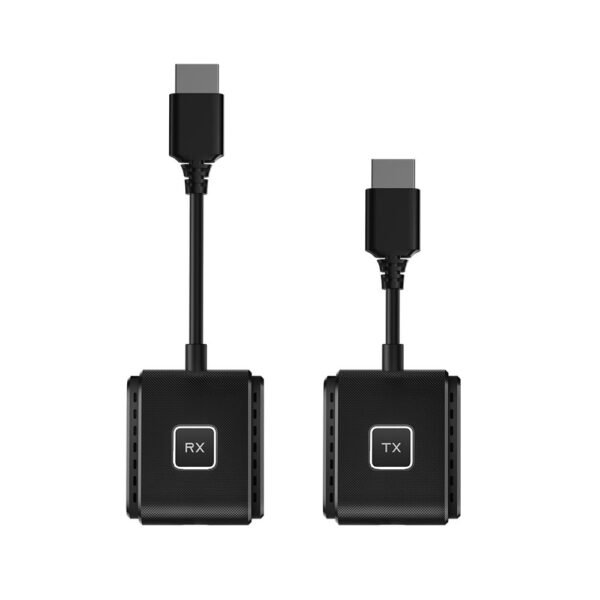

50M Type-C (CHD01) Wireless HDMI 1080P Video Transmitter Receiver Kit

The USB-C wireless transmitter transmits high-definition audio and video signals through 5G WiFi, as well as high-definition videos from PCs or fully functional mobile devices. Through WiFi transmission, one-on-one applications can be achieved. This device has excellent image processing and transmission capabilities, making signal transmission more streamlined, Smooth, and stable.

50M Video Transmitter Receiver Kit Main Characteristics

• Transmit HDMI video and audio signals over long distances via WiFi, up to 50 meters in length;
• Compatible with HDMI 1.4 and 1.3 interfaces;
• Able to automatically recognize and configure various display modes;
• Built-in automatic balancing system, smooth, clear, and stable screen;
• No software, no settings, no drivers required, just connect to cast the screen.
• Model CHD01

Wireless Video Transmitter Receiver Kit Installation Steps

Receiver+transmitter combination, plug and play.

• Connect the HD port of the receiver to the video input port of a display device such as a monitor or television.
• Connect the USB-C power port of the receiver to a charging cable and plug it into a power adapter or USB power port (voltage 5V, current 2A).
• Adjust the HD signal source of the monitor or TV to the corresponding HD port until the receiver’s startup screen displays and the startup is successful.
• Connect the transmitter to a computer or other device with a USB-C video output function. After the indicator light enters the flash state, wait for more than ten seconds, and complete the projection.

Pairing Instructions

The product has been paired before leaving the factory. Improper operation or other situations during use may cause pairing failure, and the device needs to be restored. The steps for re-pairing are as follows:

• Please hold down the receiver function key for more than 5 seconds, and a prompt message will pop up on the interface: “Pairing Timeout: 90S”. Wait for the transmitter to enter pairing mode.
• Press and hold the transmitter function key for more than 5 seconds, and the indicator light will flash for pairing. Wait for the transmitter indicator light to remain on to indicate a successful connection.

Parameter

• HDMI protocol: HDMI 1.4
• Maximum supported resolution: 1920X1080@60 Hz
• Interface: HDMI A interface
• Impedance: 100 Ω
• Output: HDMI (synchronous audio and video output)
• Encoding format: H.264
• WIFI:5G
• Protocol: Standard 802.11 a/b/g/n
• Transmission distance: up to 50 meters in open environments
• Power supply: USB power supply: 5 V/2A
• Maximum power consumption: MAX 3W
• Working temperature/humidity: 0 ℃~50 ℃/10%~80% RH (non solidifying)
• Product size: 49.6 × 43.6 × 16.6mm
• Resolution: 1920 * 1080, 1280 * 720 (60P), 1280 * 960, 1280 * 800, 1280 * 720 (50P), 1024 * 76
• Frame rate: 30-60 frames per second
• Delay: 80-100ms (open environment)

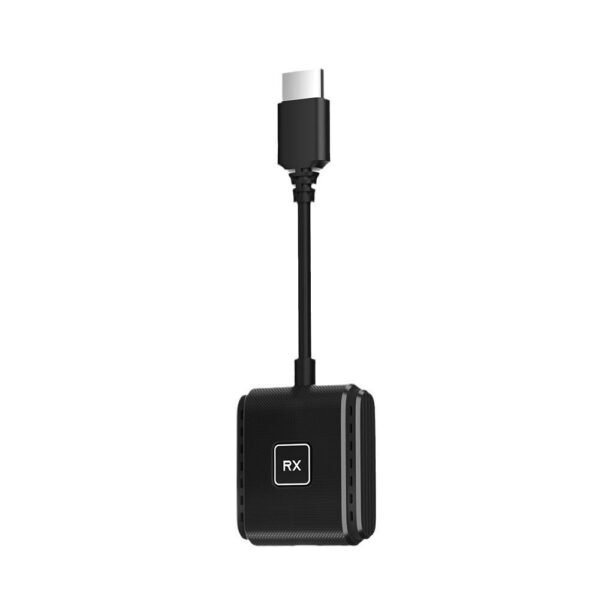

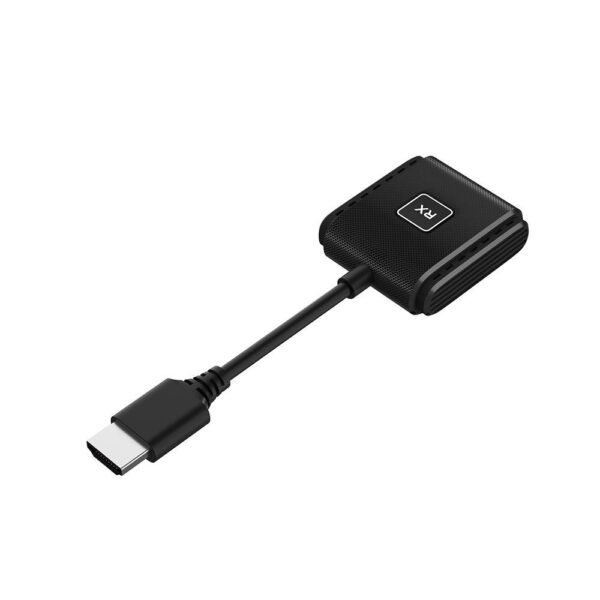

RX

• Storage space: 128MB
• Reception: Built-in antenna
• Interface: HDMI、USB-C

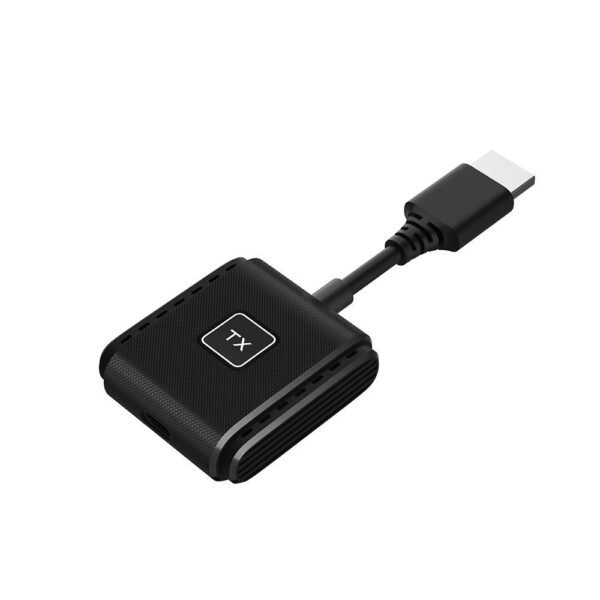

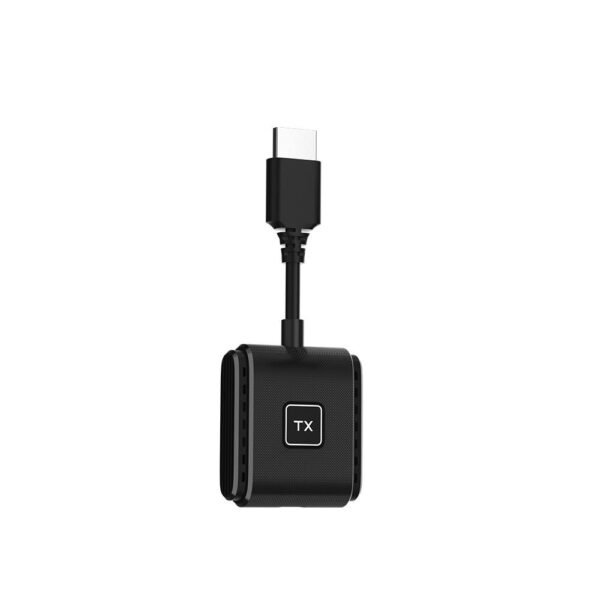

TX

• Number of interfaces: 2
• Interface: USB-C
• Resolution: 1080P

Function

It can realize the use of laptops, tablets, or mobile phones on LCDs, projectors, and touch all-in-one machines. Wireless screen mirroring is performed on display devices such as LED splicing screens.
