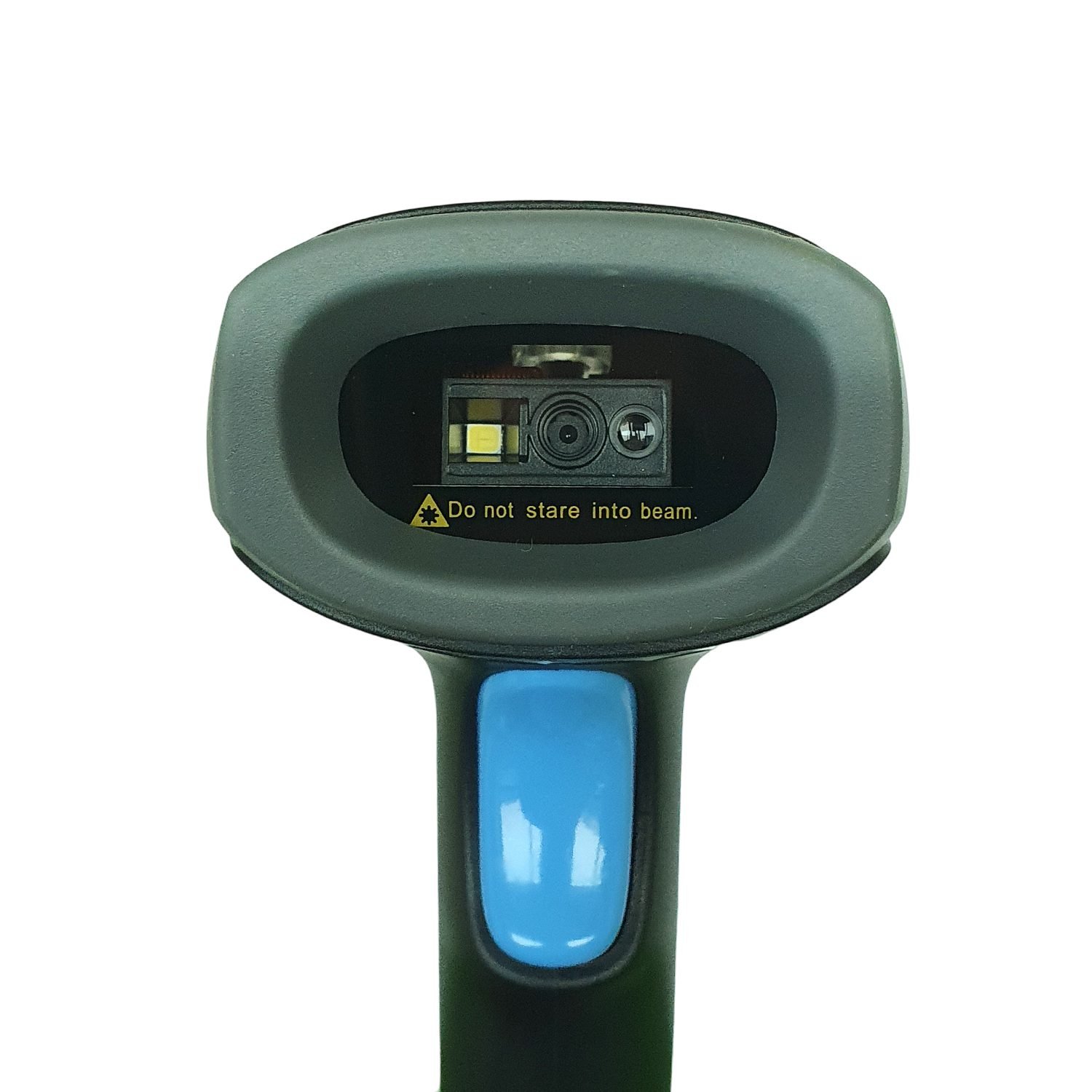

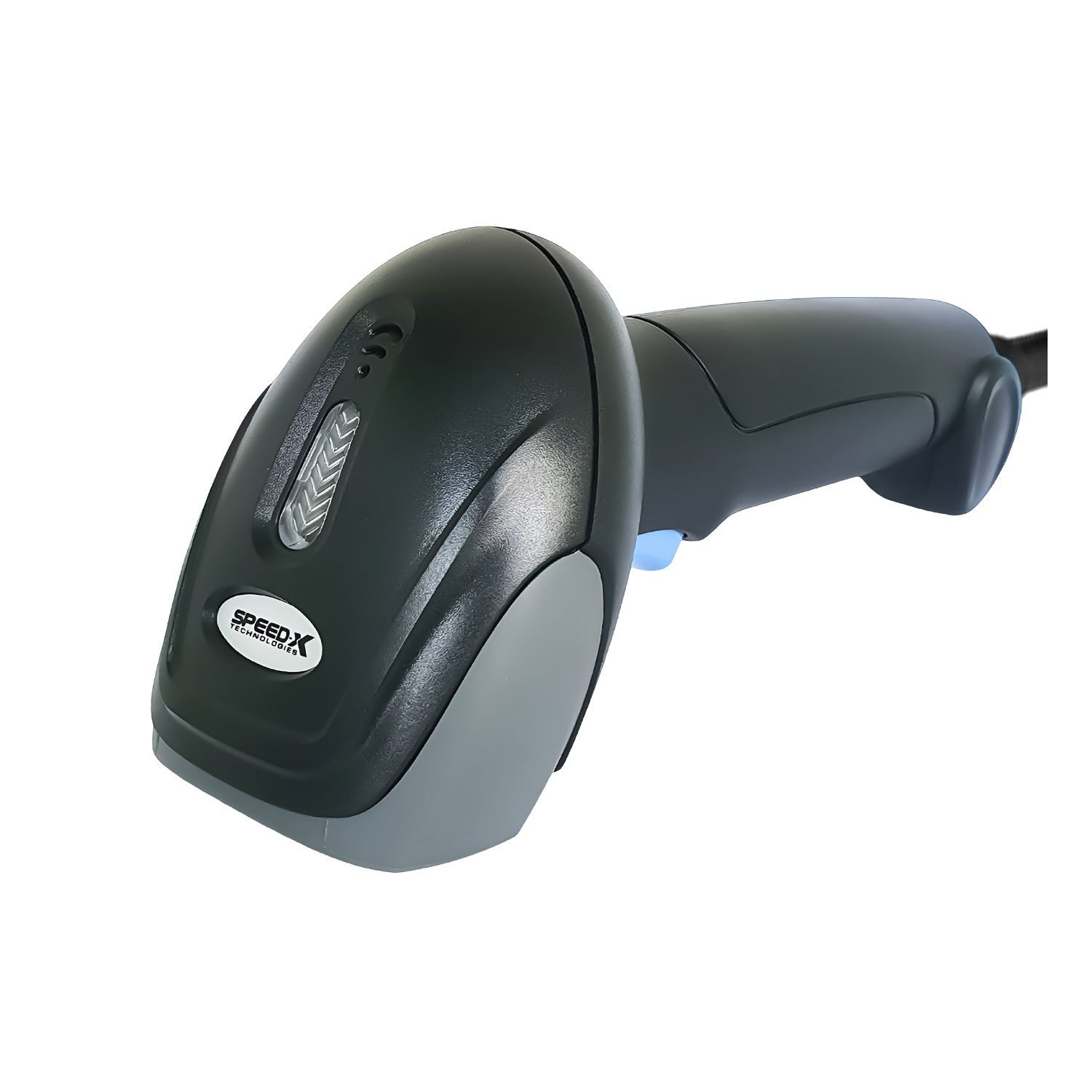

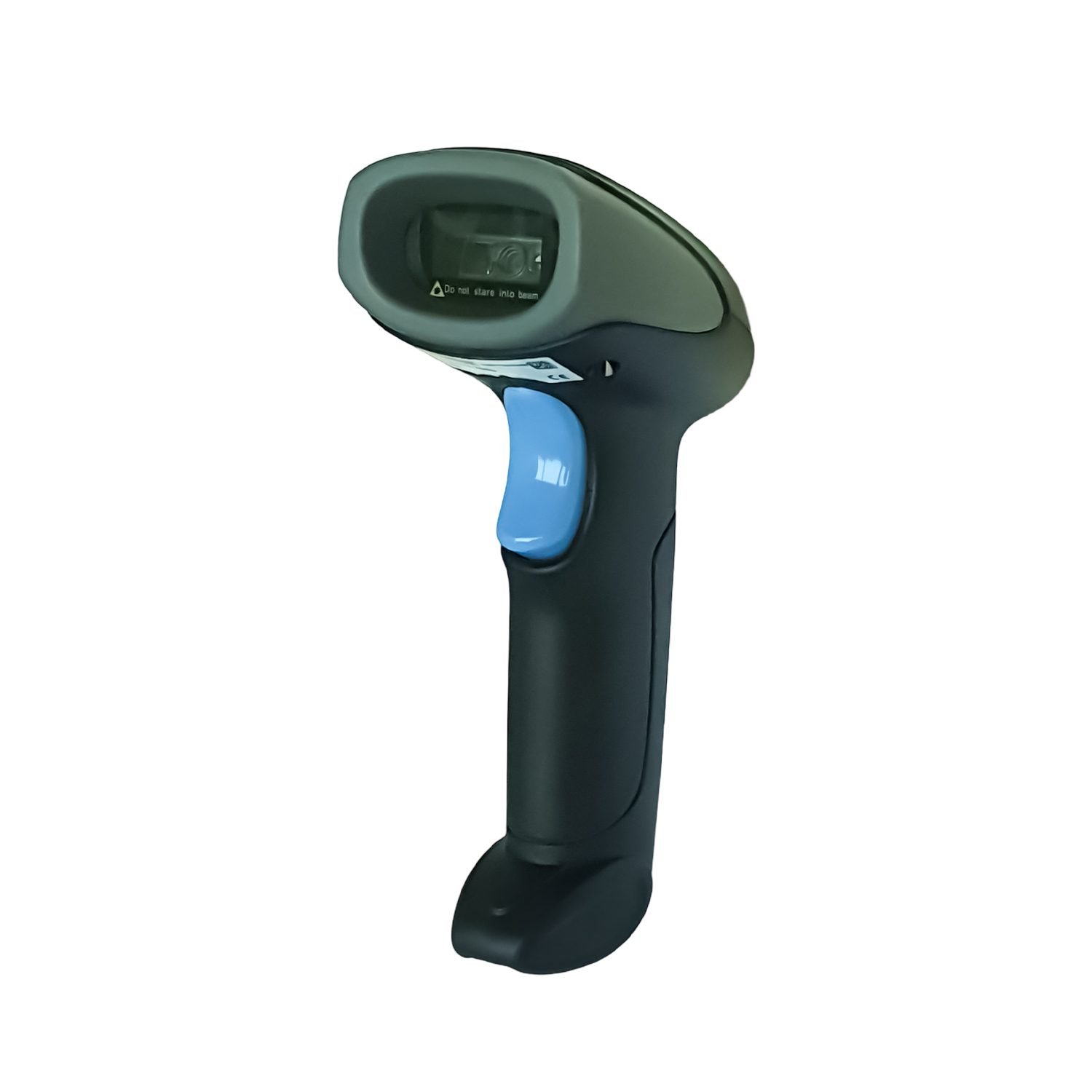

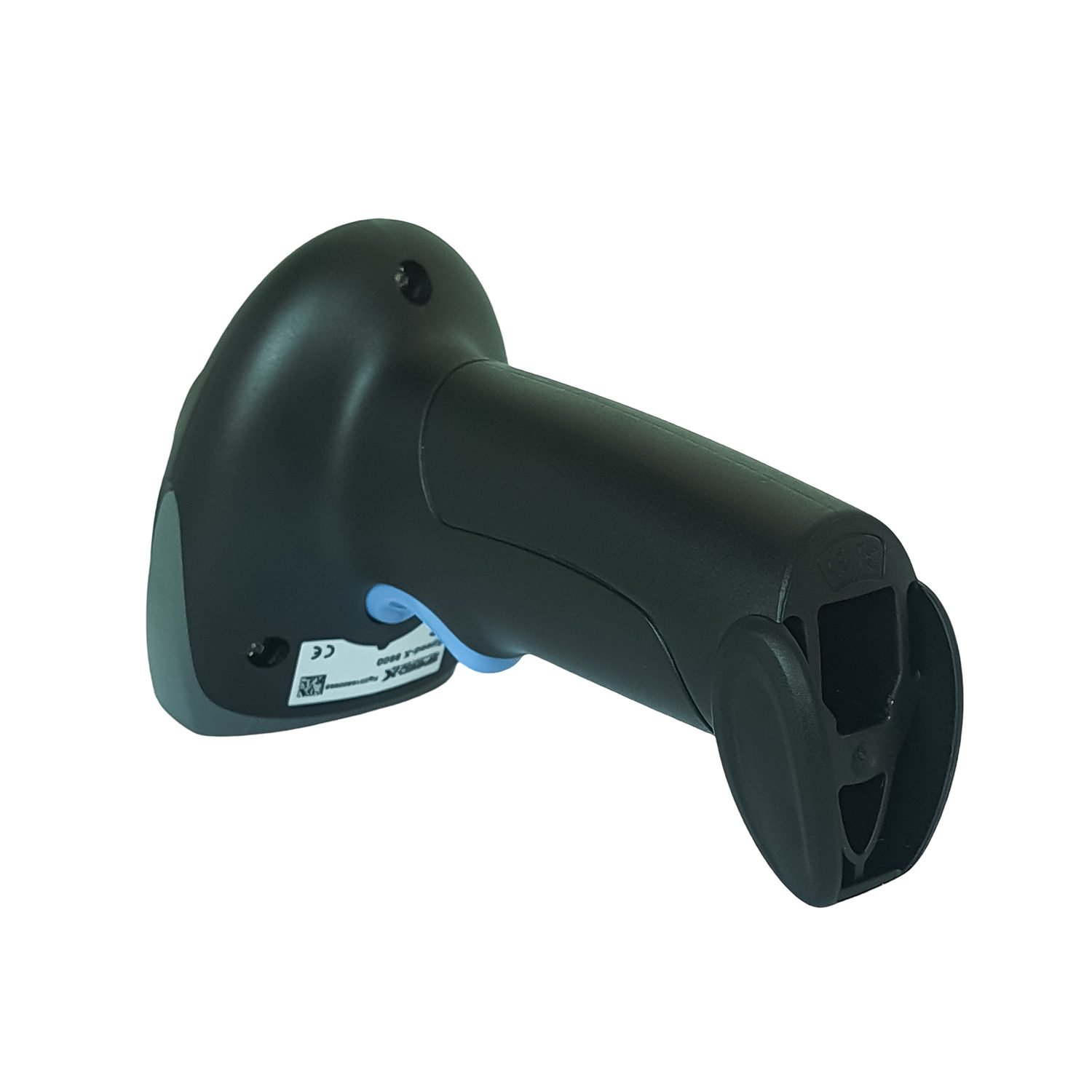

Speed-X 8600 2D Wire CMOS Handheld Barcode Scanner

Description

Speed-X 8600 2D Wire CMOS Handheld Barcode Scanner (Plug And Play USB Cable)

The Speed-X 8600 2D Wire CMOS Handheld Barcode Scanner offers fast, reliable scanning with plug-and-play USB connectivity. It features a CMOS array sensor and supports 1D and 2D barcodes like QR Code, Data Matrix, and more. The lightweight design (125g) and durable build, including a 1.5m drop resistance, make it ideal for various environments. It operates within wide temperature ranges, ensuring dependable performance in challenging conditions.

Technical Barcode Scanner Specifications

Electrical Characteristics

• Interface Supported: USB HID KEYBOARD/USB COM
• Input Voltage: DC 5V±10%
• Current
  • Max::170mA
  • Dormant current：48mA

Optical Characteristics

• Image Sensor: CMOS Array Sensor
• Sensor Resolution: 640×480 Pixels
• Light Source: White LED
• Aim Light Source: Red Bar LED

Performance Characteristics

• Scanning Angle: Pitch ±60°, Skew ±40°, Tilt ±180°
• Field of View: 66° (H), 50° (V)
• Min Resolution:
  • 1D: 0.127mm/5mil
  • 2D: 0.202mm/8mil
• Min PCS Value: >20% for UPC/EAN 13 (5mil)
• Language: Multiple languages supported
• Data Editing: Custom data output supported
• Decode Capability:
  • 1D : Code128（ISBT 128, AIM 128, GS1 128), EAN-13, EAN-8, UPCE0, UPCE1, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey
  • 2D: QR Code, Data Matrix, PDF417, Micro QR

Physical Characteristics

• Dimensions: 90mm*62mm*160mm(L*W*H)
• Weight: 125g(not included cable)
• Indicator: Beeper, LED

Environmental Characteristics

• Temperature: -20°- 65°C (operation) ， -30°- 70°C (storage)
• Humidity: 5 – 90% (operation)；5 – 90% (storage)5
• Ambient Light: Up to 80,000 lx
• Shock Drop Test: 1.5m drop onto a concrete surface

Decoding Depth of Field
