Description

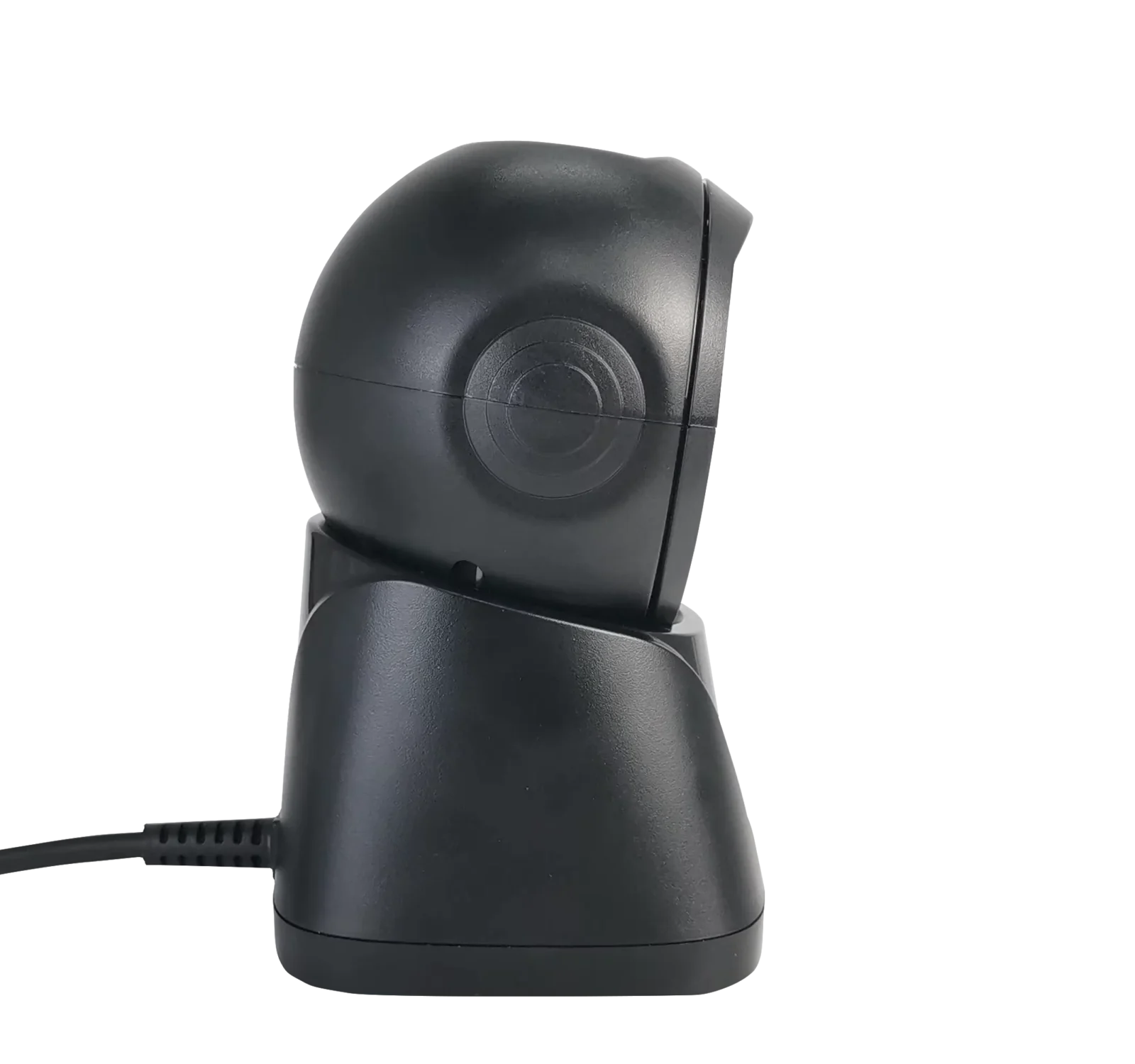

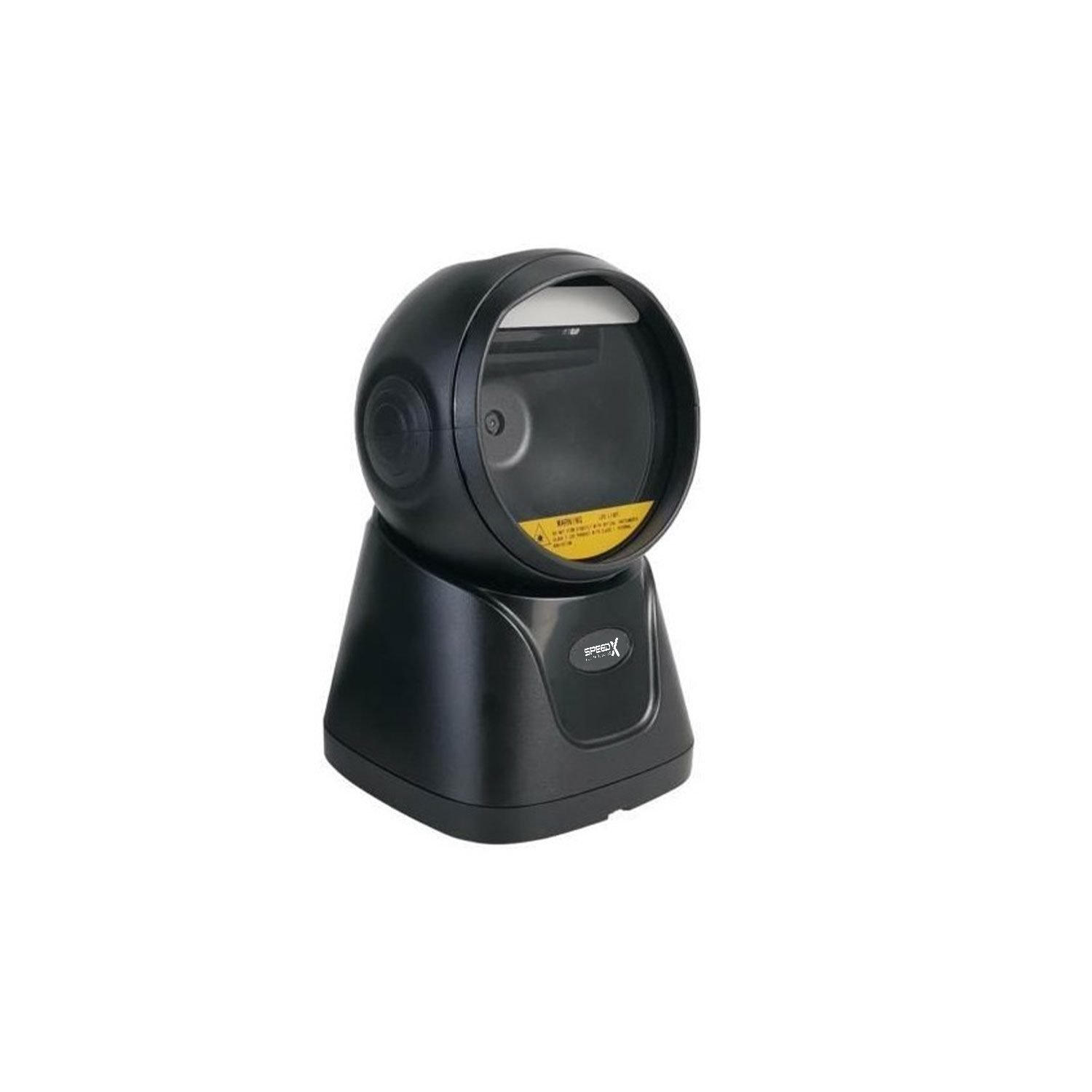

Speed-X 9500 2D Desktop Barcode Scanner
The Speed-X 9500 2D Desktop Barcode Scanner is a versatile and efficient scanning solution for various business needs. This scanner supports multiple interfaces, including RS-232, USB HID Keyboard, and USB VCP, ensuring seamless integration with existing systems. Powered by a CMOS Array Sensor with a resolution of 640 x 480 pixels and a red LED light source, it delivers high-performance scanning capabilities.
With a comprehensive decoding capability, it can read a wide range of 1D and 2D barcodes, including Codabar, Code 39, QR code, DataMatrix, and more, making it suitable for diverse applications. The scanner boasts a durable design, withstanding drops from up to 1.5 meters onto concrete. Its compact dimensions (100mm x 94mm x 152mm) and lightweight build (265g) make it easy to install and use. The Speed-X 9500 operates efficiently in temperatures from 0° to 50°C and can be stored in temperatures ranging from -10° to 60°C. Ideal for retail, logistics, and healthcare, it ensures reliable performance with minimal resolution requirements and multiple language support.
2D Desktop Barcode Scanner Technical Specifications
Electrical Characteristics
- Interface Supported: RS-232/USB HID KEYBOARD/USB VCP
- Input Voltage: DC 5V±10%
- Current: Max:335
Optical Characteristics
- Image Sensor: CMOS Array Sensor
- Sensor Resolution: 640 X 480 Pixels
- Light Source: RED LED
Performance Characteristics
- Field of View: 39H),29V)
- Min Resolution:
- 1D:0.127mm/5mil(PCS 0.9)
- 2D:0.254mm/10mil(PCS 0.9)
- Min .PCS value: 〉20% UPC/EAN 13(13mil)
- Language: Multiple Languages
- Decode Capability
- 1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5(Industrial), Standard 2 of 5(IATA), Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN-8, EAN-13, MSI Code, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, Matrix 2 of 5, Telepen
- 2D:PDF417, QR code,DataMatrix ,Aztec ,China Post(Hong Kong 2 of 5),Korea Post,Han Xin code,MaxiCode,MicroPDF417,GS1 Composite Code,Codablock A ,Codablock F
Physical Characteristics
- Dimension: 100mm*94mm*152mm(L*W*H)
- Weight: 265g
- Indicator: Beeper, LED
Environmental Characteristics
- Temperature:
- 0°∽50°C (operation)
- -10°∽60°C (storage)
- Humidity: 20 – 85% (operation) ) 20 – 95% (storage)
- Shock Drop Test: 1.5m drop onto the concrete surface
Decoding Depth of Field:
Symbology | Resolution | Nearest | Farthest |
Code 39 | 5mil | 0cm | 9cm |
Code 39 | 13mil | 0cm | 17.5cm |
UPC-A | 3.34mil | 1cm | 17cm |
QR | 20mil | 0cm | 13cm |
QR | 30mil | 0cm | 18cm |
Pay Code(QR 3*3cm) | – | 1cm | 32cm |
Pay Code(QR 2.3*2.3cm) | – | 0cm | 28cm |
