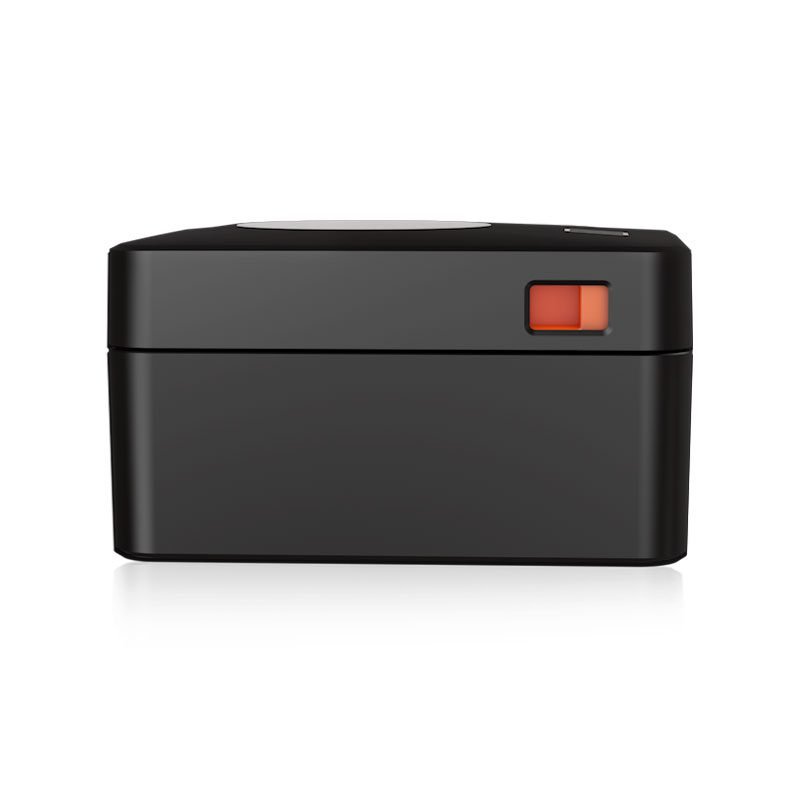

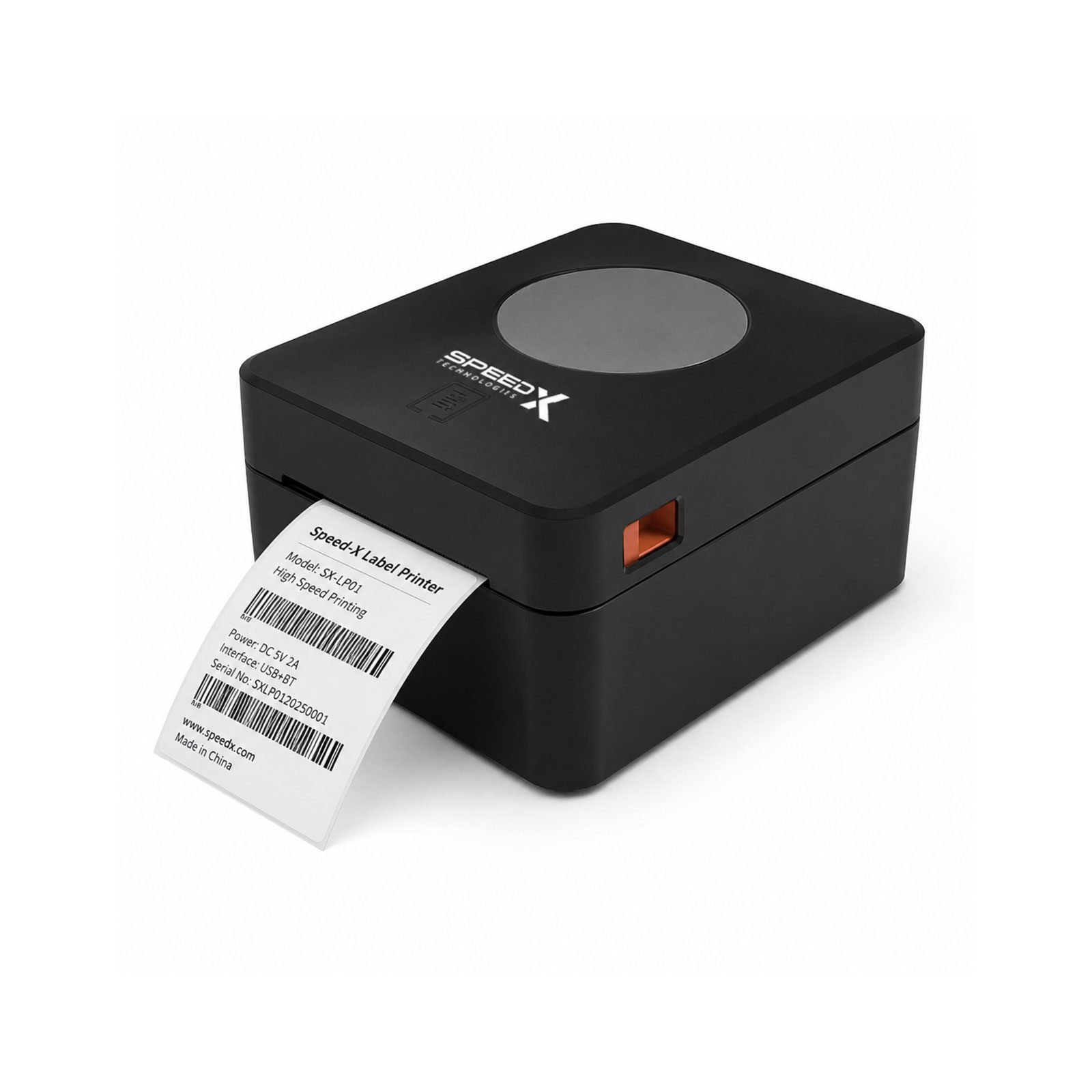

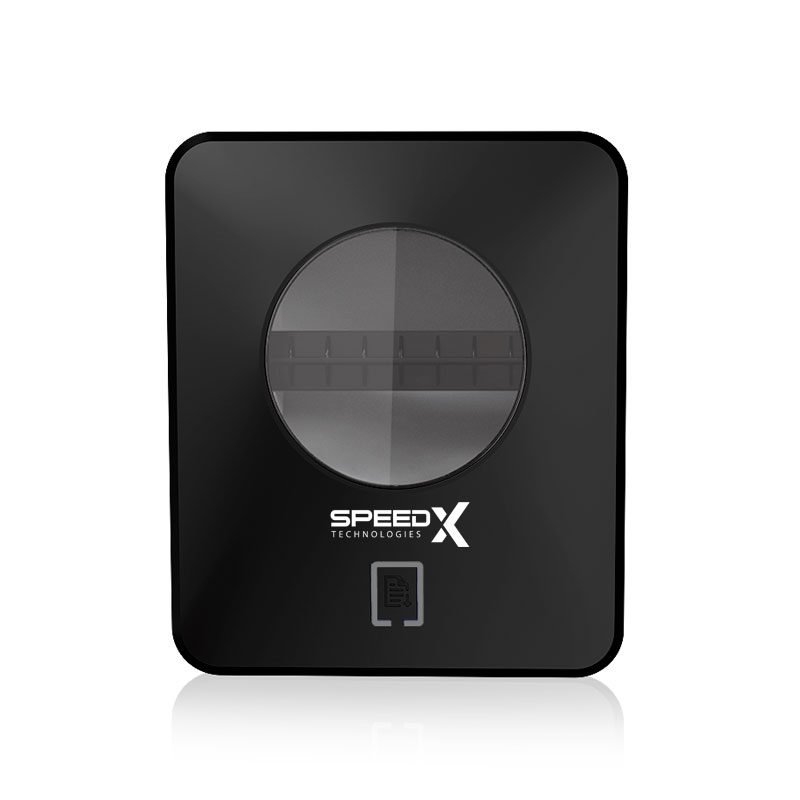

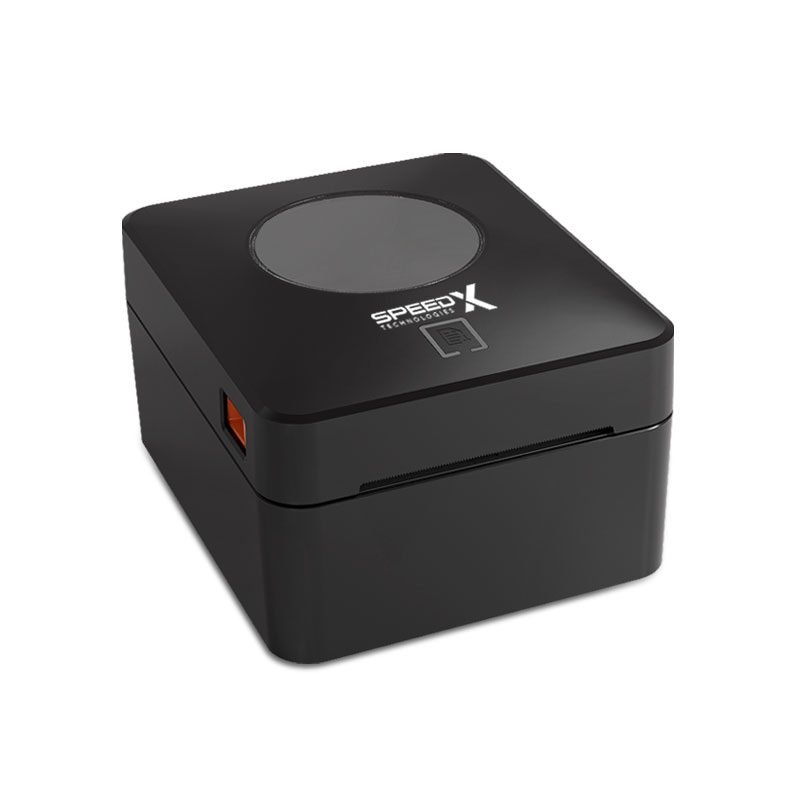

Speed-X SP-690UB 4-inch Thermal Label Printer (USB/Bluetooth)

Description

Speed-X SP-690UB 4-inch Thermal Label Printer (USB/Bluetooth)

The SpeedX SP-690UB 4-Inch Thermal Label Printer is a versatile and high-performance direct thermal printer designed for efficient barcode, label, receipt, and POS printing. With a fast printing speed of up to 160 mm/sec and 203 DPI resolution, it delivers clear and professional-quality prints for retail stores, warehouses, offices, logistics businesses, and point-of-sale environments.

The SP-690UB supports multiple connectivity options, including USB and Bluetooth, making it easy to integrate into different working environments. It is compatible with Windows and Mac, while also supporting iOS and Android SDK, providing flexible compatibility for modern business applications.

This 4-inch thermal label printer supports paper widths from 25 mm to 110 mm, with a maximum effective printing width of 104 mm. It can handle continuous, gap, black-mark, fan-fold, and punched-hole thermal media, making it suitable for a wide range of labeling requirements.

The printer supports popular printing commands including TSPL, CPCL, and ESC/POS, along with a wide range of 1D barcodes such as Code 39, Code 128, EAN, UPC, ITF, and more. It also supports QR Code and PDF417 2D barcodes, making it suitable for modern barcode and labeling applications.

With multiple built-in media sensors, including gap, black-mark, paper-exit, and cover-opening sensors, the SP-690UB is designed for reliable and convenient printing operation. Its compact 215 × 180 × 115 mm design and approximately 1.5 kg weight with accessories make it practical for desktops, counters, and workstations where space is limited.

Thermal Label Printer (USB/Bluetooth) Key Features

• 160 mm/sec Fast Printing Speed for efficient business printing
• 203 DPI Resolution for sharp text, labels, and barcodes
• 4-Inch Printing Support with up to 104 mm effective print width
• USB & BT Connectivity with Bluetooth and USB
• Windows & Mac Compatible
• iOS & Android SDK Support
• TSPL, CPCL & ESC/POS printing command support
• Supports 1D and 2D Barcodes
• Supports QR Code & PDF417
• Compatible with continuous, gap, black-mark, fan-fold and punched-hole media
• Multiple built-in paper and cover sensors
• Compact and professional desktop design
• 50 KM TPH Life for dependable long-term operation
• Operating temperature from 0°C to 50°C

USB Bluetooth Thermal Label Printer Technical Specification:

• Model SpeedX SP-690UB
• Brand: Speed-X
• Printing Method: Direct Thermal
• Printing Speed: Up to 160 mm/sec
• Effective Print Width: 104 mm
• Available Paper Width: 25–110 mm
• Paper Thickness: 0.06–0.30 mm
• Resolution 203 DPI
• Interfaces USB/ Bluetooth
• Commands: TSPL / CPCL / ESC/POS
• 1D Barcodes: Code 39, Code 128, EAN, UPC, ITF and more
• 2D Barcodes: QR Code, PDF417
• Sensors: Gap / Black Mark / Paper Exit / Cover Opening
• OS Support: Windows / Mac
• Mobile Support: iOS / Android SDK
• TPH Life: 50 KM
• Power Input: AC 100–240V, 50–60Hz
• Power Output: DC 24V / 2.5A
• Noise Level: Less than 60 dB
• Available Colors: White / Black / Pink / Blue
• Printer Dimensions 215 × 180 × 115 mm
• Weight: 1.5 kg with accessories

Ideal for

The SpeedX SP-690UB Thermal Label Printer is suitable for retail shops, POS systems, warehouses, inventory management, logistics, shipping labels, barcode printing, product labeling, and office applications where fast and reliable thermal printing is required.
