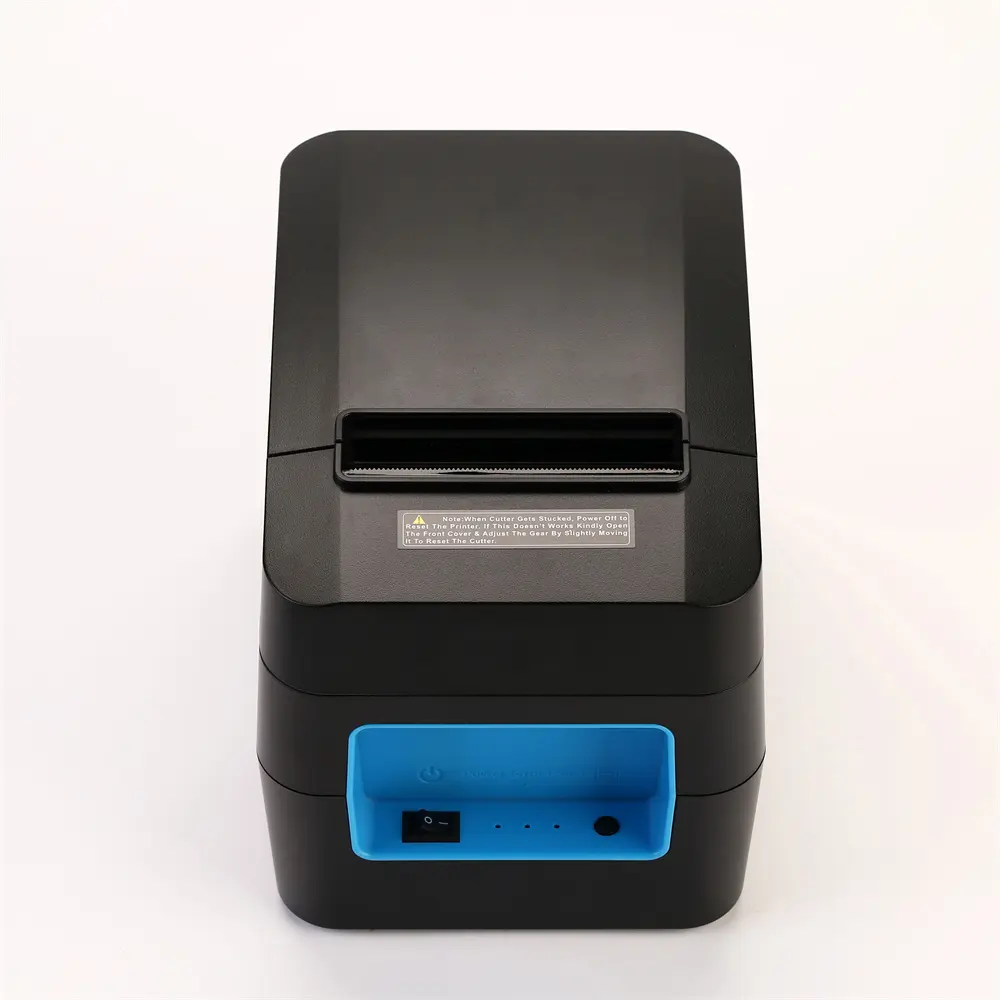

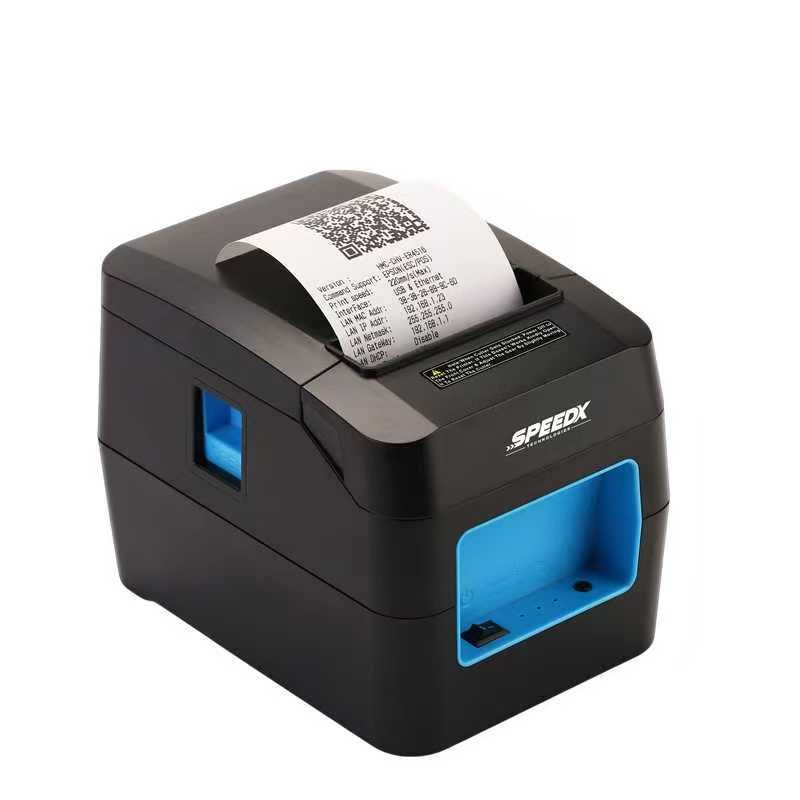

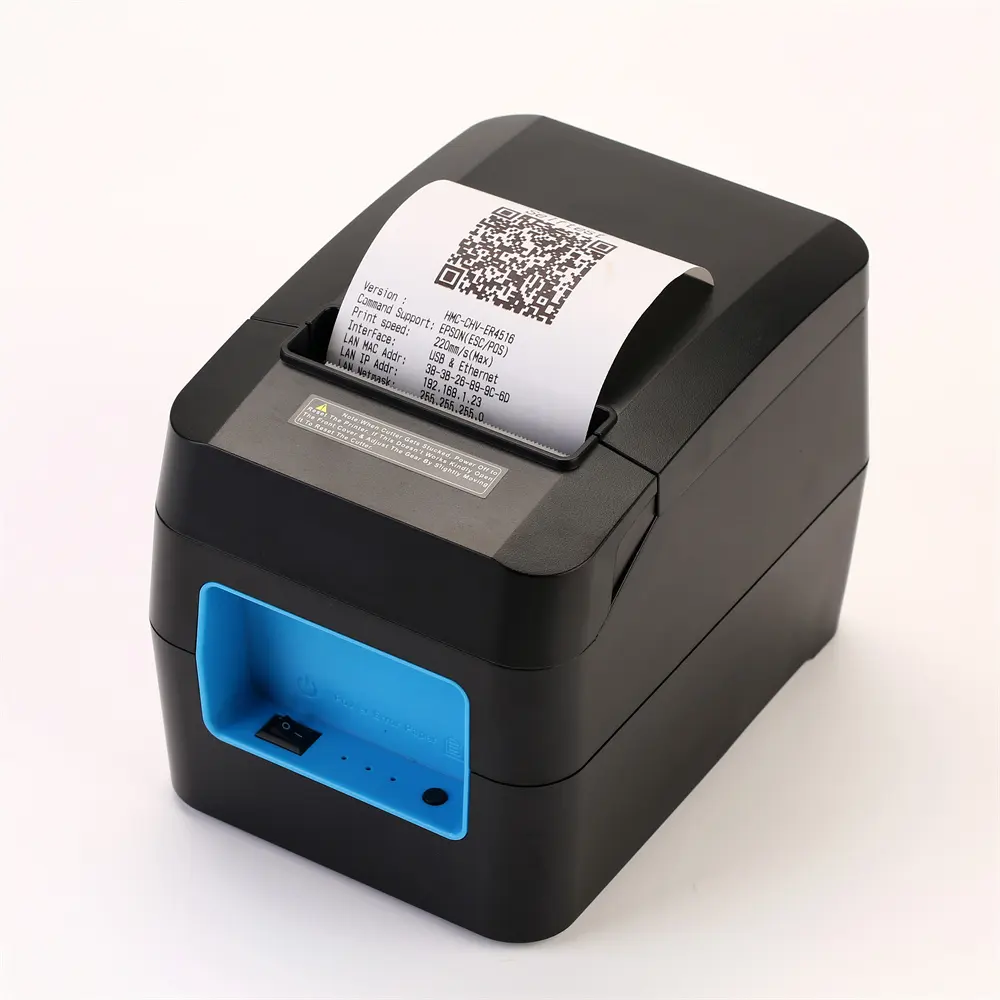

Speed-X SP-90A High Print Speed Thermal Receipt and Label Printer

Description

Speed-X SP-90A Thermal Receipt and Label Printer 80mm 220mm/s High Print Speed

Speed-X SP-90A Thermal Receipt and Label Printer offers high-speed printing at up to 220mm/s, making it ideal for retail and business environments. With a 72mm print width, 203 dpi resolution, and support for both receipts and labels, this versatile printer ensures sharp, reliable output. Featuring USB, Bluetooth, WiFi, and Ethernet connectivity, the Speed-X SP-90A is compatible with Android, iOS, Windows, and Linux, delivering seamless integration and performance.

Speed-X Thermal Receipt and Label Printer Specifications

• Print Parameters
  • Printing Method: Thermal Line
  • Printing Width: 72mm
  • Resolution: 576 Dots/Line or 512 Dots/Line (8 dots/mm, 203 dpi)
  • Print Speed: 160-220 mm/second (Max)
  • Interface: USB, Internet, Bluetooth, WiFi (interface combinations available — contact manufacturer for confirmation)
  • Line Spacing: 3.75mm (adjustable by command)
  • Lines per Page:
    • Font A: 48 lines
    • Font B: 64 lines
    • Simple/Traditional Chinese: 24 lines
• Character Set
  • Supported Fonts: Standard GB18030 Simplified, BIG5 Traditional Chinese (Japanese and Korean optional)
  • Character Size:
    • ANK Font A: 1.5 × 3.0 mm (12 × 24 dots)
    • ANK Font B: 1.1 × 2.1 mm (9 × 17 dots)
    • Simplified/Traditional Chinese: 3.0 × 3.0 mm (24 × 24 dots)
  • Extended Character Sets: PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, Iran II, Latvian, Arabic, PT151/1251, PC737, WPC1257, Thai, Vietnam, PC864, PC1001
  • Barcodes:
    • 1D: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
    • 2D: QR Code
• Graphics
  • Supports bitmap download and printing
• Paper
  • Type: Thermal
  • Width: 79.5 ± 0.5 mm
  • Diameter: ≤ 80 mm

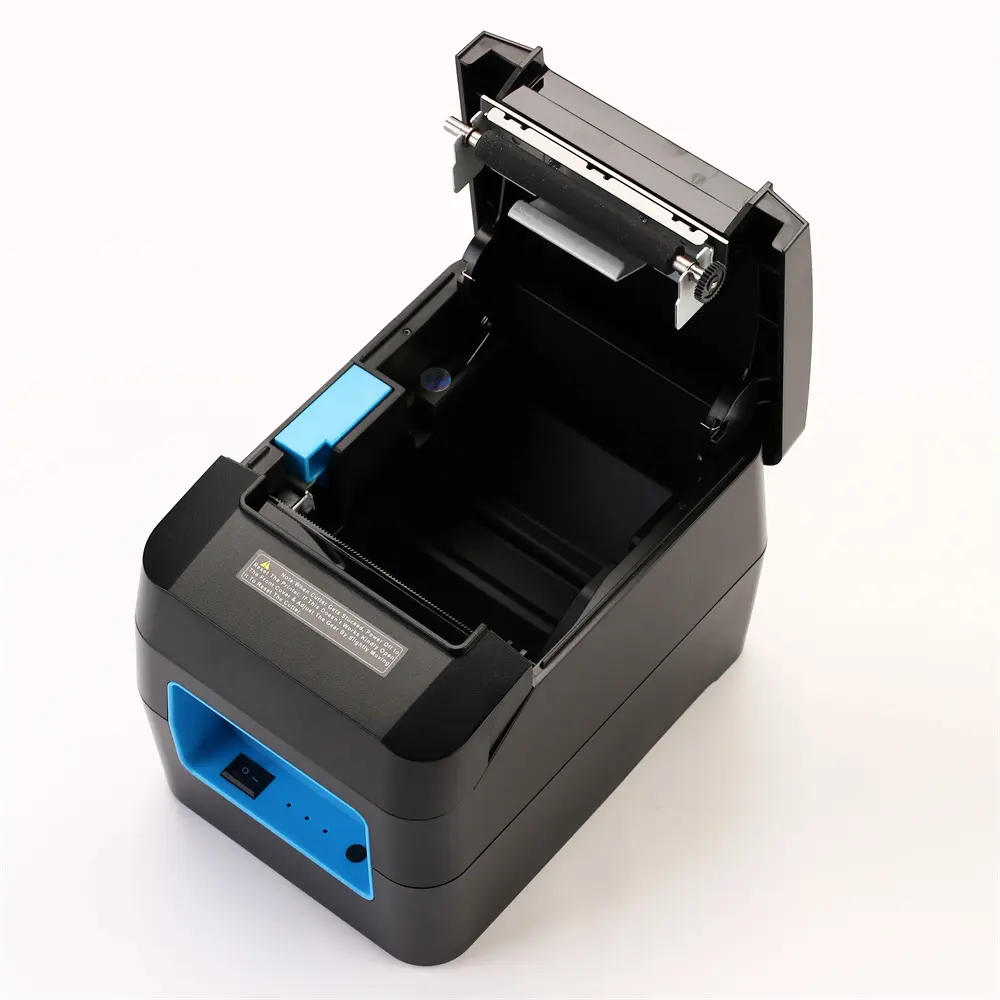

  • Feed Method: Easy feed (clamshell design)
• Print Commands
  • ESC/POS
• Power
  • Adaptor Input: AC 100V-240V, 50- 60Hz
  • Adaptor Output: DC 12V / 2A
  • Cash Drawer Output: DC 12V / 1A
• Buffer
  • NV Flash: 256 KB
• Physical Characteristics
• • Weight: 0.9 kg
  • Dimensions: 185 × 133 × 133 mm
• Environment
• • Working: 5 ~ 45℃, Humidity: 10 ~ 80%
  • Storage: -10 ~ 50℃, Humidity: 10 ~ 90% (no dew)
• Reliability
• • Print Head Life: 100 km (print density ≤ 12.5%)
  • Cutter Life: 1,000,000 cuts
• Software
• • Drivers: Android, iOS, Linux, Windows
