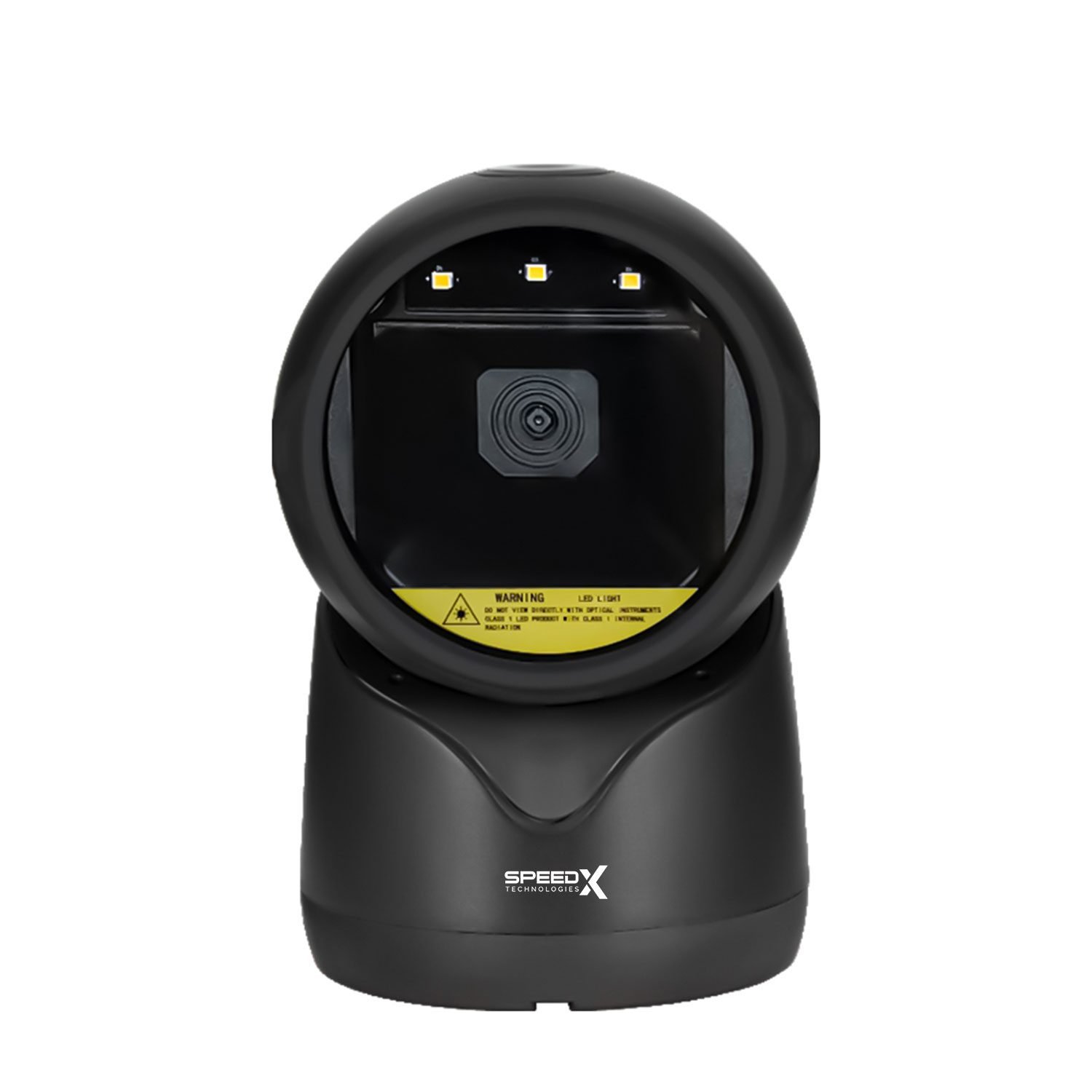

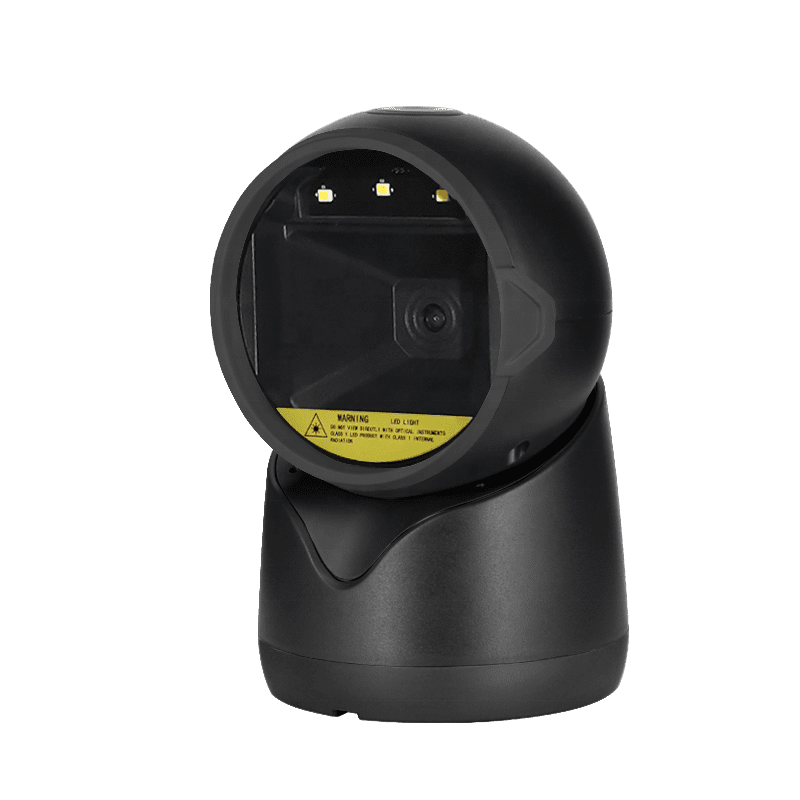

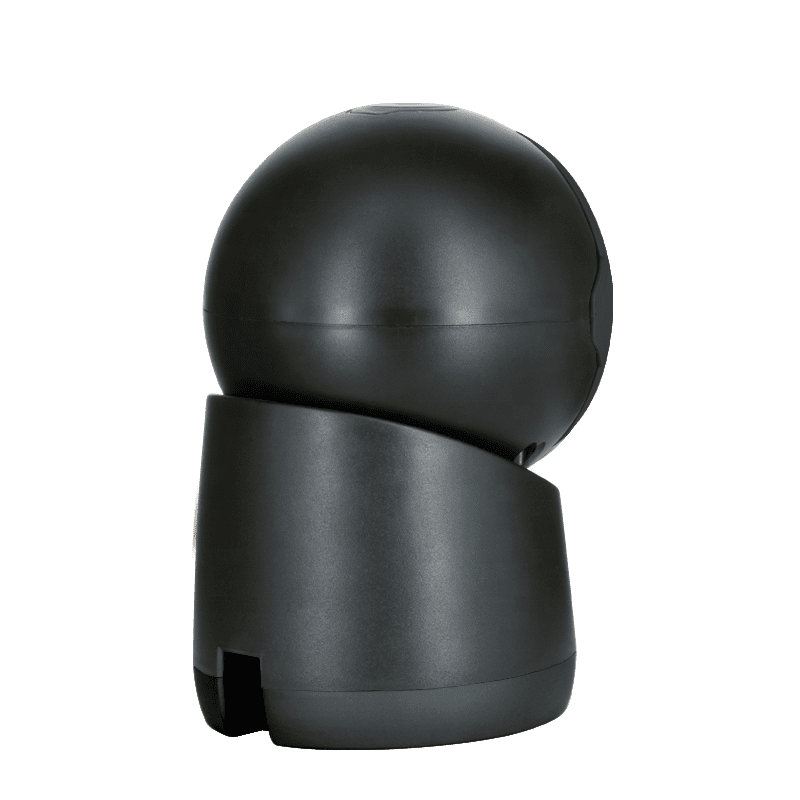

Speed-X 9600 2D Desktop Barcode Scanner

Description

Speed-X 9600 2D Desktop Barcode Scanner

The Speed-X 9600 2D Desktop Barcode Scanner delivers fast and reliable barcode reading with advanced CMOS sensor technology and a 60 FPS decoding speed. Supporting 1D and 2D codes, including QR, PDF417, Data Matrix, and more, it ensures seamless performance for retail, logistics, and healthcare. With USB connectivity, wide scanning angles, and durable drop resistance, this compact and lightweight scanner provides high accuracy, multiple language support, and customizable data output, making it ideal for modern businesses.

2D Barcode Image Scanner – Technical Specifications

• Electrical Characteristics

• • Interface Supported: USB HID Keyboard / USB VCP
  • Input Voltage: DC 5V ± 5%
  • Current: Max 335mA

• Optical Characteristics

• • Image Sensor: CMOS Array Sensor
  • Sensor Resolution: 640 × 480 pixels
  • Light Source: White LED
  • Decoding Speed: 60 FPS

• Performance Characteristics

• • Scanning Angle: Pitch ±65°, Skew ±65°, Tilt 360°
  • Field of View: 36° (H), 27° (V)
  • Minimum Resolution: 4 mil
  • Minimum PCS Value: ≥ 20% UPC/EAN-13 (13 mil)
  • Language Support: Multiple languages
  • Data Editing: Supports custom data output
  • Decode Capability:
    • 1D: Codabar, Code 39, Interleaved 2 of 5, NEC 2 of 5, Code 93,
      Straight 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,
      Code 128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI,
      GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded,
      China Post (Hong Kong 2 of 5), GS1 Composite Codes, Codeblock A, Codeblock F,
      Code 32, Korea Post
    • 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Aztec Code,
      HanXin Code, MaxiCode

• Physical Characteristics

• • Dimensions (L × W × H): 94 mm × 100 mm × 152 mm
  • Weight: 260 g
  • Indicators: Beeper, LED

• Environmental Characteristics

• • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -30°C to 70°C
  • Humidity: 5% to 95% RH (non-condensing)
  • Shock Resistance: 1.5 m drop onto a concrete surface

• Decoding Depth of Field

  • Code 39 (Resolution 5 mil): Nearest 10 mm, Farthest 90 mm
  • Code 39 (Resolution 13 mil): Nearest 0 mm, Farthest 175 mm
  • UPC-A (Resolution 13 mil): Nearest 10 mm, Farthest 170 mm
  • QR Code (Resolution 20 mil): Nearest 0 mm, Farthest 130 mm
  • QR Code (Resolution 30 mil): Nearest 0 mm, Farthest 180 mm
  • Pay Code (QR 3 × 3 cm): Nearest 10 mm, Farthest 320 mm
  • Pay Code (QR 2.3 × 2.3 cm): Nearest 0 mm, Farthest 260 mm
