Speed-x 8500 2D Wire Cmos Handheld Barcode Scanner

  • Fast Shipping

    Receive products in amazing time
  • Delivery

    All Over Pakistan.
  • Always Authentic

    We only sell 100% authentic products
  • Secure Shopping

    Your data is always protected

 4,950

Category:

Description

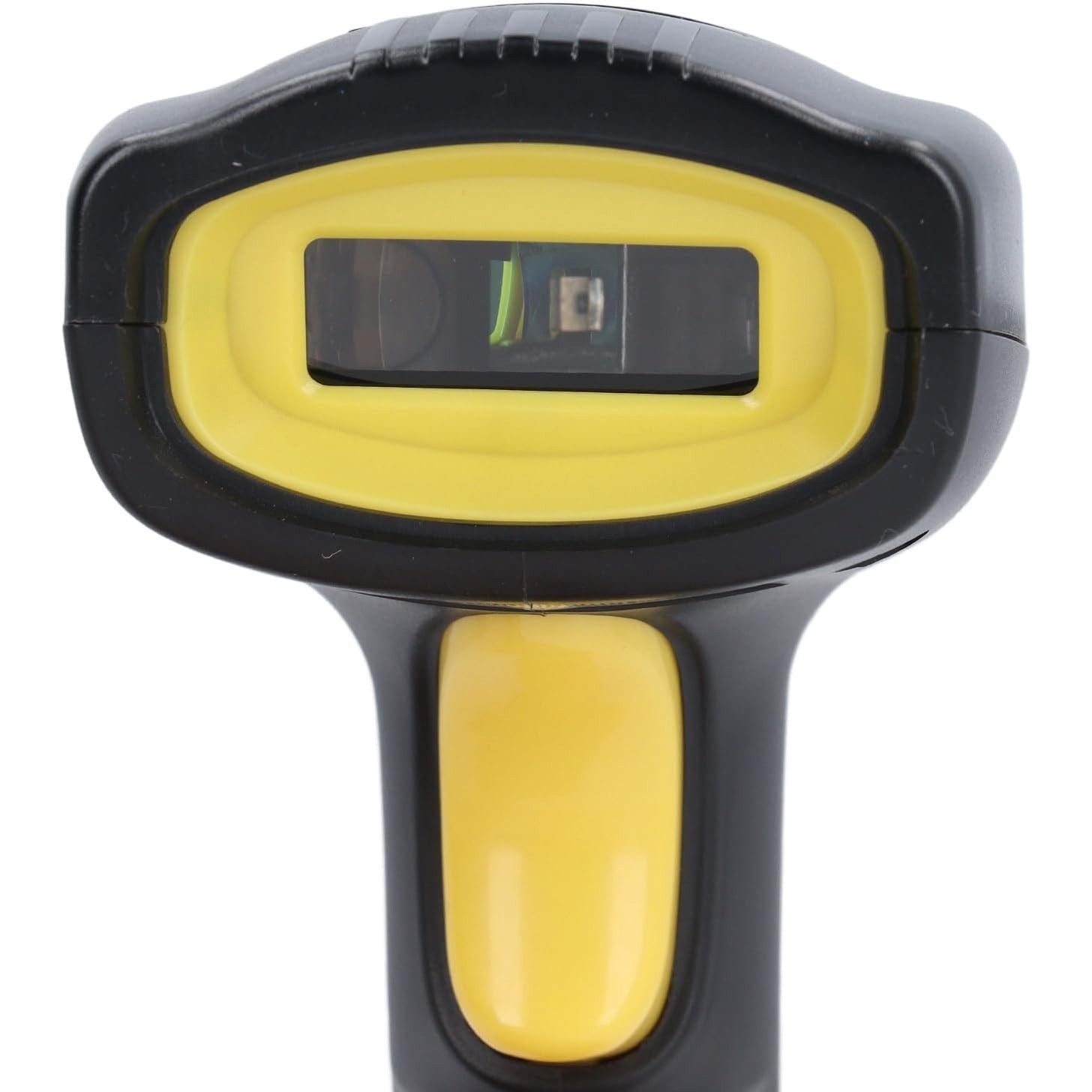

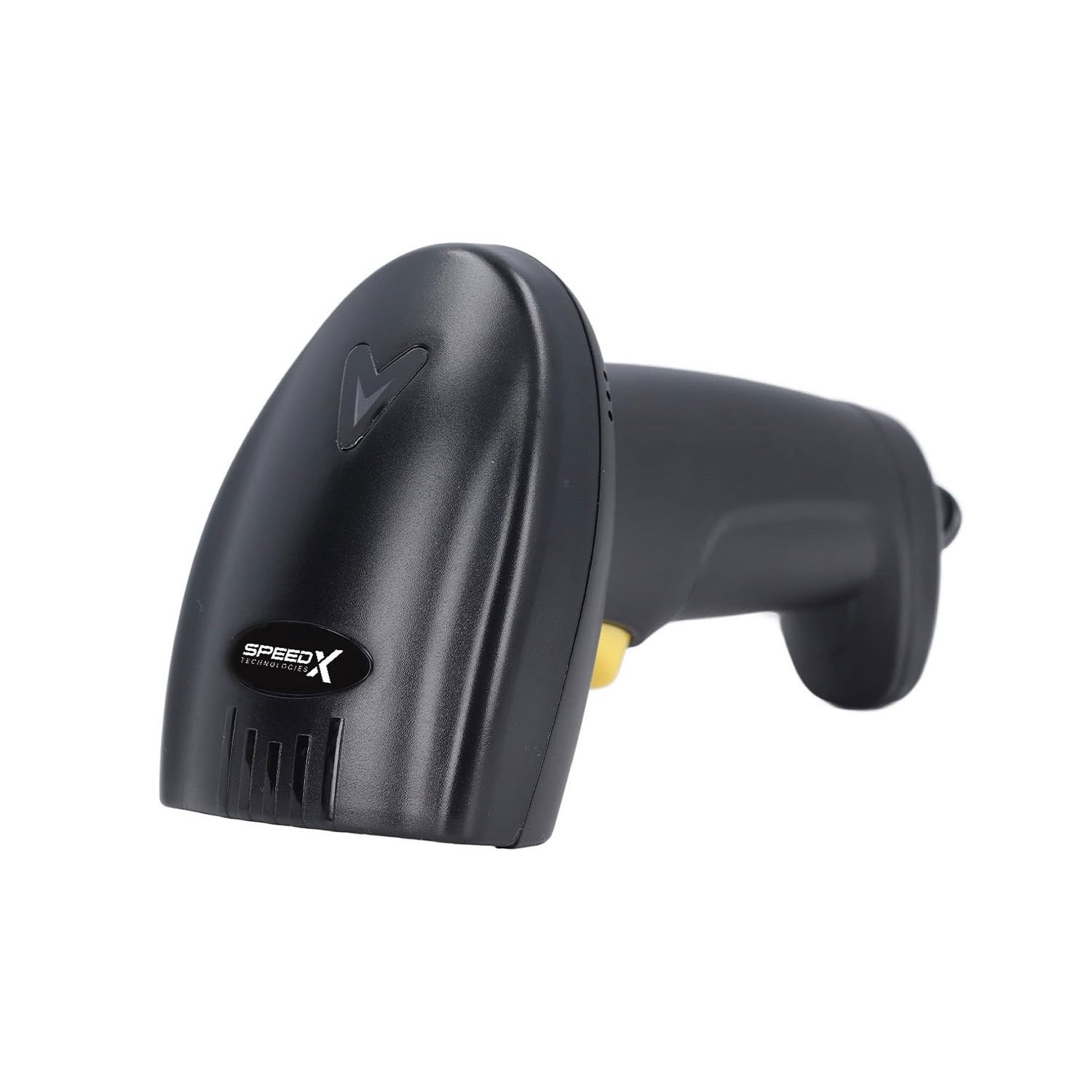

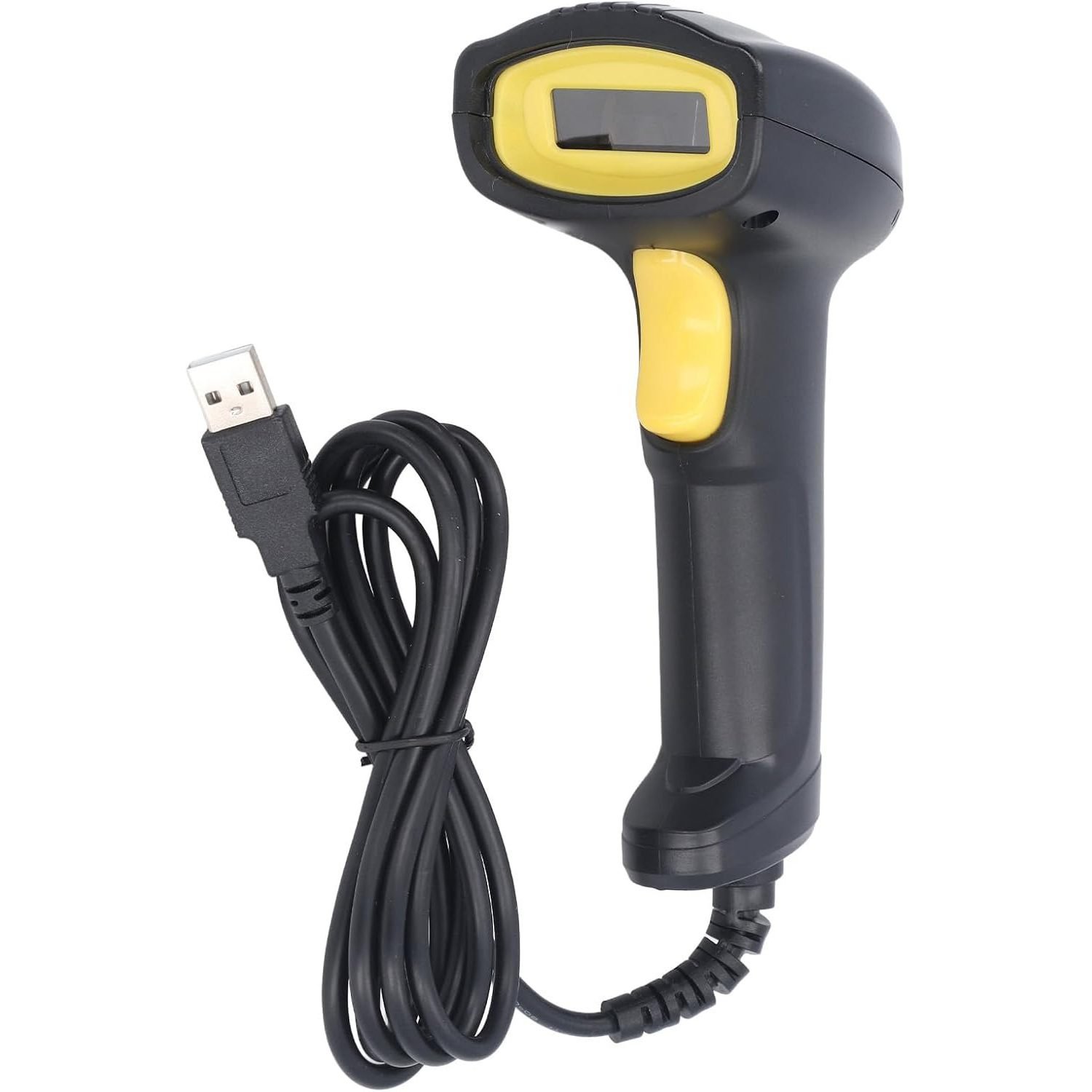

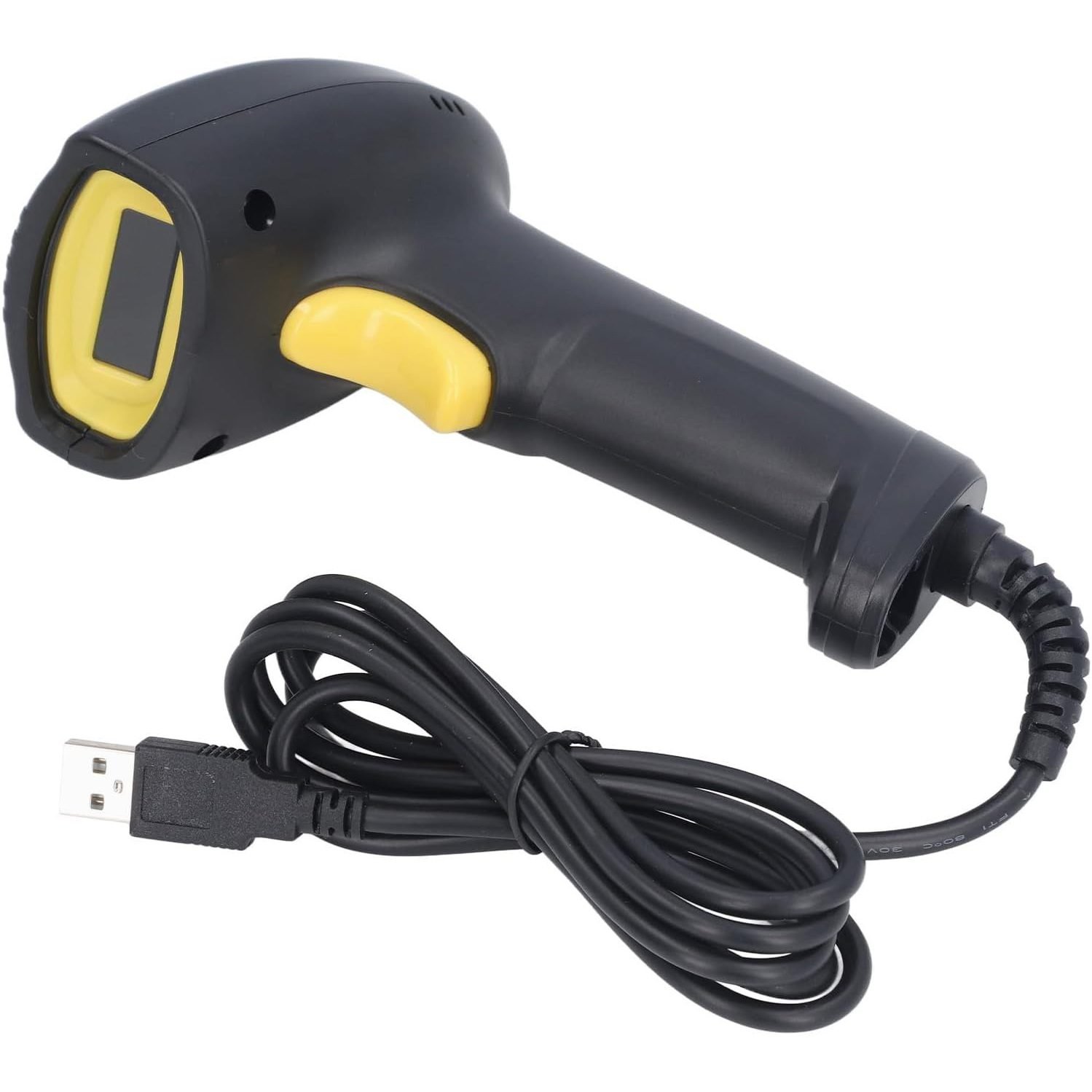

Speed-x 8500 2D Wire Cmos Handheld Barcode Scanner (Plug and Play USB Cable)

Handheld laser scanner with easy operation, user-friendly design, easy-to-hold design, and high reliability, yet affordable price is suitable for a wide range of applications such as retail, pos, paperwork, and inventory management.

Technical Parameters

Electrical Characteristics

  • Interface: USB HID KEYBOARD/USB VCP
  • Voltage requirement: 5VDC±10%
  • Current consumption Max: 120mA

Optical Characteristics

  • Photo sensor CMOS array sensor
  • SENSOR RESOLUTION: 648X488 pixels
  • Light source: White LED*1
  • Aim light source: Red Bar led

Performance Characteristics

  • Decode angle Pitch angle: ±55°
  • Skew angle: ±55°
  • Tilt angle: ±180°
  • Min resolution 1D: 4mil(0.127)
  • Min.PCS value: 〉30%UPC/EAN 13(13mil)
  • Language: Multiple languages
  • Field of View 20°(H),21°(V)
  • Identification 1D: UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
    2D:QR, PDF417,Data Matrix

Physical Characteristics

  • Dimensions: 67 mm H x97 mm W x165 mm D
  • Weight: 122.8g

Environmental Characteristics

  • Temp: -20°to 60°C / -4°to 140°F((operation) ) -40°-to 80°C /-40°to 176°F(storage)
  • Humidity: 5 – 95% (operation) ) 5 – 95% (storage)
  • Shock drop test: 1.5m drop onto a concrete surface
  • Ambient Light: fluorescent light 4000 lx max, direct sunlight 80,000 lx max, white light 4000 lx max
  • Regulatory
  • Electrical Safety: UL 60950, EN/IEC 60950
  • EMI/RFI FCC Part 15 Class B, EN 55024/CISPR 22
  • Environmental: RoHS

Depth of field

  • Symbology Resolution(mm) Depth of field
  • Code39 5.0 mil 40mm–90mm
  • 100% UPCA 15.0mil 40mm—250mm
  • Code 39 15.0mil 40mm–250mm
  • Code 93 10.0mil 40mm–210mm
